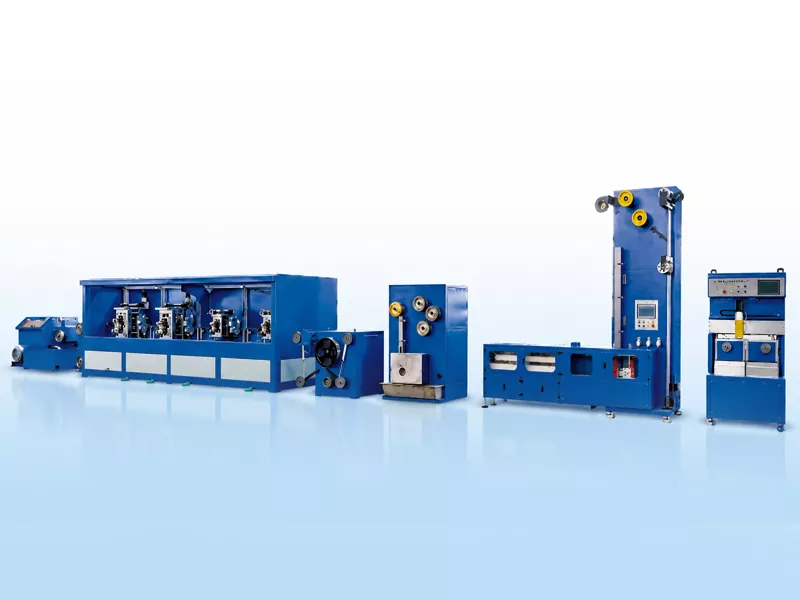

Layin Samar da Ribbon Busbar PV

GRM PV Busbar Ribbon Production Line an ƙera shi don ci gaba da sarrafa TU1 maras isashshen oxygen zagaye waya ta jan hankali zuwa cikin madaidaicin kintinkiri mai rufin lebur. Layin ya dace da ribbon haɗin haɗin gwiwa na PV, ribbon busbar, da samar da ribbon busbar mai nuni.
Cikakken layin yana haɗa zanen waya, madaidaiciyar mirgina, ci gaba da ɓarnawa, jiyya mai jujjuyawa, murfin tin mai zafi, da ɗauka ta atomatik. Yana taimakawa masana'antun ribbon na PV sarrafa faɗi da daidaiton kauri, ingancin suturar kwano, madaidaiciyar tsiri, da daidaiton iska.
Layin samar da kintinkiri na GRM yana da tsayin kusan m 26 da faɗin mita 3, tare da jimlar nauyin layin kusan tan 14. Gudun ƙira na iya kaiwa har zuwa 150 m/min, dangane da girman wayan jan ƙarfe, ƙimar kintinkiri da aka gama, saurin tinning, da hanyar ɗaukar hoto. A ƙarƙashin yanayin samarwa na yau da kullun, fitarwa na wata-wata zai iya kaiwa kusan tan 60-80.

Aika tambaya

Bayanin Samfura

Daga Wayar Copper zuwa Ƙarshen Busbar Ribbon

Layin Samar da Ribbon Busbar na PV galibi yana amfani da wayar tagulla azaman albarkatun ƙasa. An fara zana waya zuwa diamita da ake buƙata don yin birgima, sannan a samar da ita ta zama kintinkiri mai faɗi ta hanyar mirgina mai tsayi da yawa. Bayan birgima, tsiri na jan ƙarfe yana wucewa ta ci gaba da ƙwanƙwasa don daidaita kayan aikin injinsa, sannan kuma jiyya mai juyi da murfin tsoma mai zafi. A ƙarshe, ƙaƙƙarfan kintinkiri yana rauni ta hanyar tsarin ɗauka ta atomatik akan spools ko coils pancake.

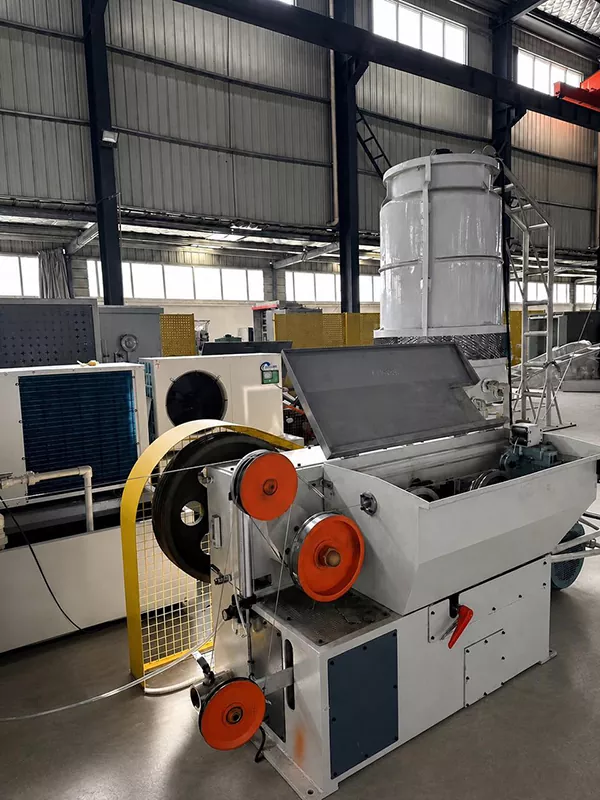

Injin Zana

Ana zana waya ta jan ƙarfe ta mutu zuwa diamita na 2.6-3.0 mm, a shirye don mirgina.

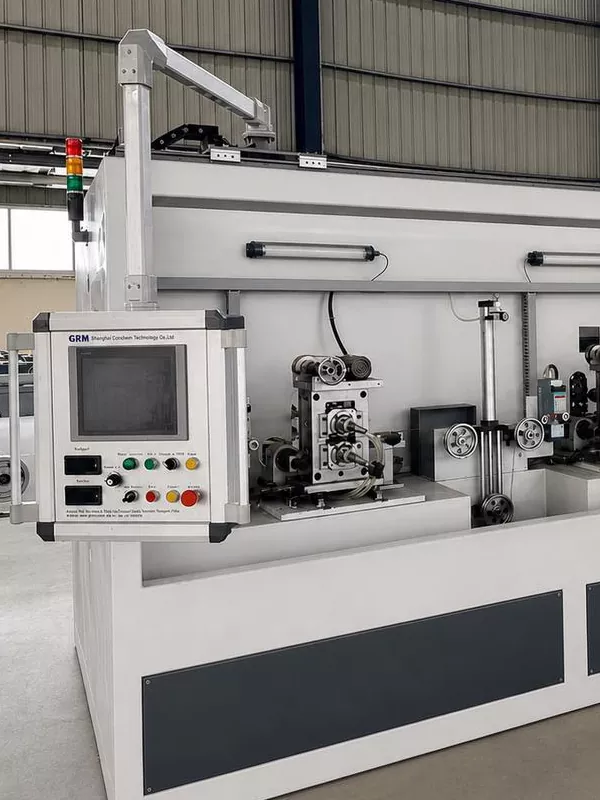

4 Mirgine Tsaya

Zagayewar waya ta jan ƙarfe ana birgima cikin kintinkiri mai faɗi, tare da faɗin sarrafawa da daidaito kauri.

Annealing

Ana amfani da tsukewar ɗan gajeren lokaci tare da kariyar iskar gas da ke yawo da sanyaya ruwa don inganta kayan aikin ribbon na jan ƙarfe.

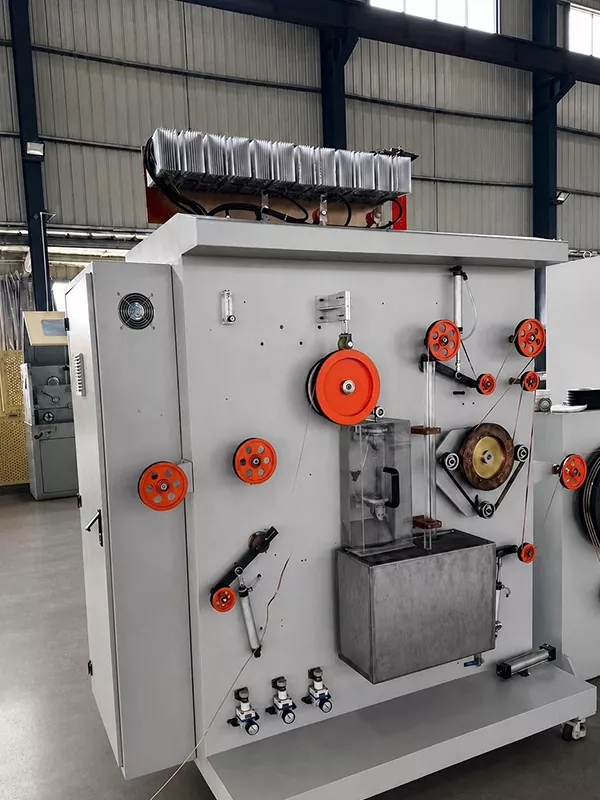

Tufafin Tin

Ana amfani da murfin tin mai zafi. Wuƙaƙen iska suna sarrafa kauri mai kauri, kuma magoya bayan sanyaya suna taimakawa wajen daidaita ingancin saman. Single-gefe tin shafi kauri: 0.01-0.025 mm.

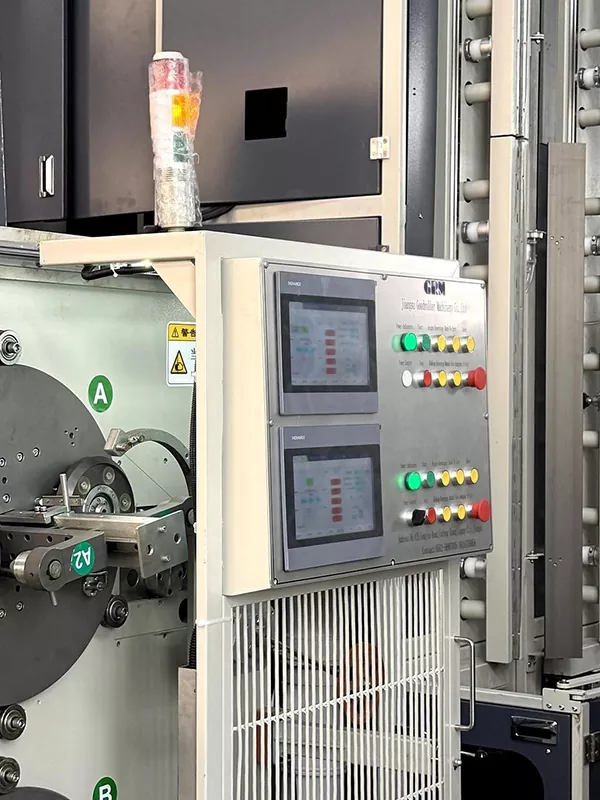

Coil Chang ta atomatik

Ayyukan zaɓi sun haɗa da servo traversing, canjin spool ta atomatik, yankan atomatik, da bugun atomatik.

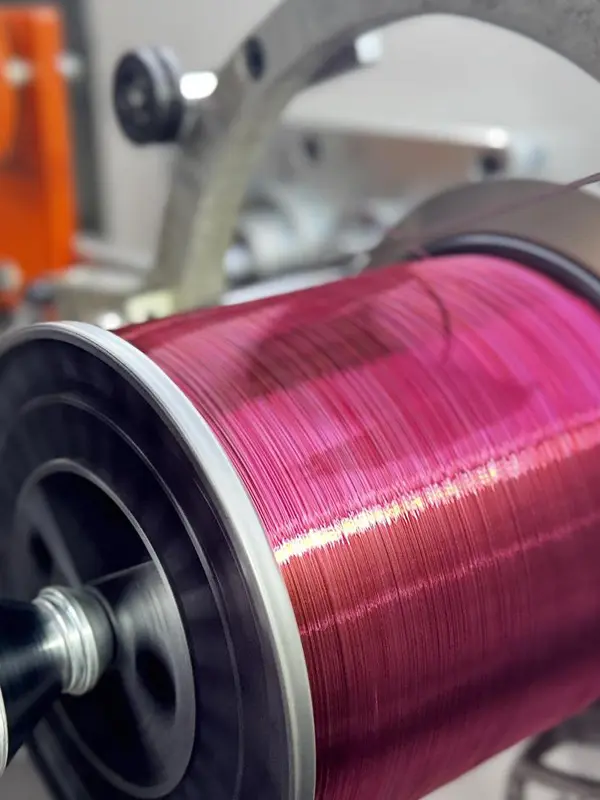

Madaidaicin ɗauka

Girman nauyi: har zuwa 30 kg.

Pancake coil winding: na zaɓi 1-2 kg.

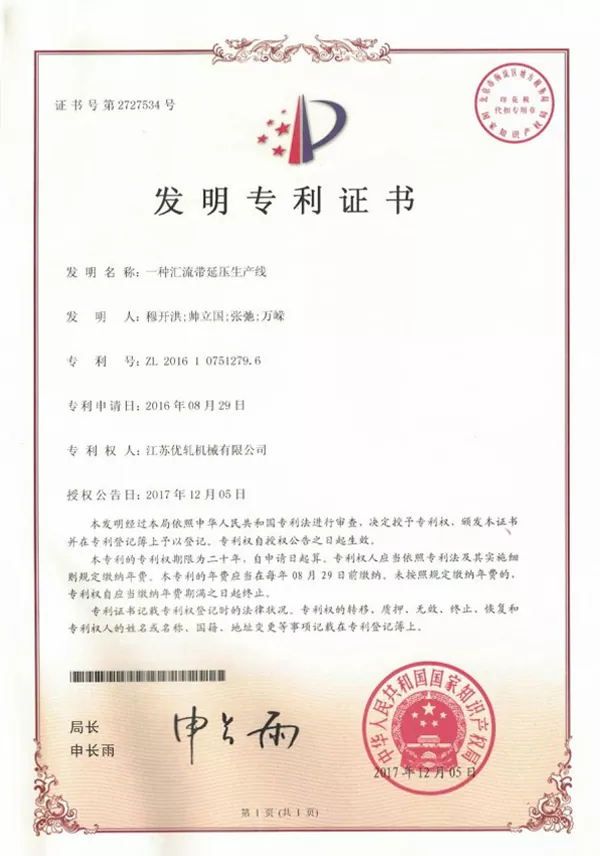

R&D da Patents

Tun daga 2015, GRM ya ci gaba da haɓaka kayan aikin masana'antu don ribbon haɗin haɗin gwiwar PV da ribbon busbar. Kamfanin ya sami haƙƙin fasaha da yawa masu alaƙa da madaidaiciyar mirgina, haɗa layin samarwa, da hanyoyin masana'antar kintinkiri na PV.

Fasahar Haɓakawa ta GRM don Kayan Aikin Kera Ribbon na PV

Mabuɗin Siffofin

Ci gaba da samarwa daga shigarwar waya ta jan karfe zuwa fitowar tambarin bus ɗin da aka gama.
Ingantattun daidaiton girma, daidaiton sutura, da ingancin iska.
Haɗin kai da tashin hankali da ɗauka ta atomatik suna taimakawa rage katsewar samarwa da sa hannun hannu.
Yana goyan bayan daidaitaccen kintinkirin busbar da kuma samar da ribbon busbar mai nuni don buƙatun kayan ƙirar PV daban-daban.
Yana ba da masana'antun ribbon na PV tare da haɗin gwiwar samarwa da aka mayar da hankali kan sarrafa tsari, daidaiton samfur, da ingantaccen samarwa.

Tambayoyin da ake yawan yi

1.Menene iyakar girman samfurin da aka gama?

Nisa da aka gama: 3-8 mm.

Ƙarshen kauri: 0.2-0.4 mm.

2.Menene juriya da kewayon dukiya?

Haƙuri mai faɗi: ± 0.085 mm.

Haƙuri na kauri: ± 0.01 mm.

Ƙarfin ƙarfi: ≥260 MPa.

Ƙarfin haɓaka: 90-130 MPa.

3.Wace hanyar shafa tin ake amfani da ita?

Layin yana amfani da murfin tin mai zafi, tare da cikakken ɗaukar hoto a kusa da kintinkiri, gami da gefuna biyu.

4.Yaya ake auna faɗin samfur da kauri?

Tsaya ta huɗu na injin mirgina mai tsayayye huɗu sanye take da tsarin ma'aunin Laser guda biyu, ɗaya don auna faɗi da ɗaya don auna kauri. Ana iya nuna bayanan ma'auni akan HMI.

5.Wadanne kayan za a iya sarrafa?

Layin Samar da Ribbon na PV Busbar an tsara shi ne don TU1 waya mara amfani da iskar oxygen. Za a iya samar da na'urori na musamman bisa ga nau'ikan gawa na jan karfe, girman samfur, da buƙatun kintinkiri na musamman.
