Solar PV Ribbon Machine

Solar PV Ribbon & MBB Wire Manufacturing Solutions

GRM yana ba da cikakkiyar mafita ga masana'antaPV interconnect ribbon, PV busbar ribbon da MBB zagaye na waya samar. Fayil ɗin kayan aikin mu yana ɗaukar madaidaiciyar mirgina, ɓarnawa, tinning, jiyya na saman ƙasa da tsarin spooling ta atomatik, yana tallafawa samar da manyan ƙwararrun ƙwararrun ƙwararrun ƙirar hoto na zamani.

An ƙera shi don ingantaccen inganci, madaidaicin iko da ingantaccen aiki na dogon lokaci, hanyoyin GRM na taimaka wa masana'antun su cika buƙatun haɓakar fasahar haɗin gwiwar salula na hasken rana.

Cikakken Maganganun Kayan Aikin Ga Masu Gudanar da Rana

PV Interconnect Ribbon

PV Busbar

MBB Round Waya

Ribon haɗin haɗin kaiyana canja wurin halin yanzu tsakanin ƙwayoyin rana,busbar ribbontattara da isar da halin yanzu zuwa akwatin junction, yayin daMBB zagaye wayayana ba da damar ingantaccen tsarin aiki ta hanyar rage asarar shading.

Waɗannan masu gudanarwa suna taka muhimmiyar rawa wajen fitar da wutar lantarki, amintacce da aikin ƙirar na dogon lokaci.

Yadda Ake Kera Masu Gudanar Da Rana

GRM yana ba da cikakkiyar mafita ga masana'antar sarrafa hasken rana. Kayan aikin GRM ya ƙunshi cikakken aikin masana'antu daga madaidaicin mirgina da annealing zuwa tinning da spooling kayan aikin jan karfe zuwa gama kintinkiri na PV da samfuran waya na MBB.

Tsarin samar da haɗin gwiwar yana tabbatar da daidaiton girman, ingantaccen shafi mai inganci da ingantaccen samarwa.

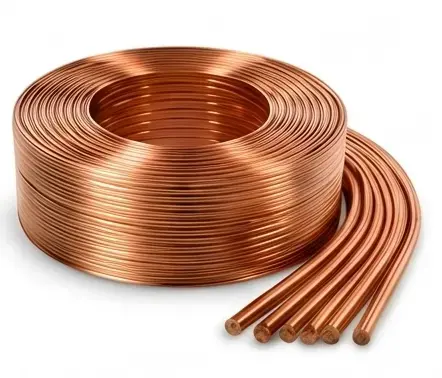

Raw Copper Material

Sanda mai tsabta mai tsabta a matsayin albarkatun kasa

Sandan Copper

Waya Copper

→

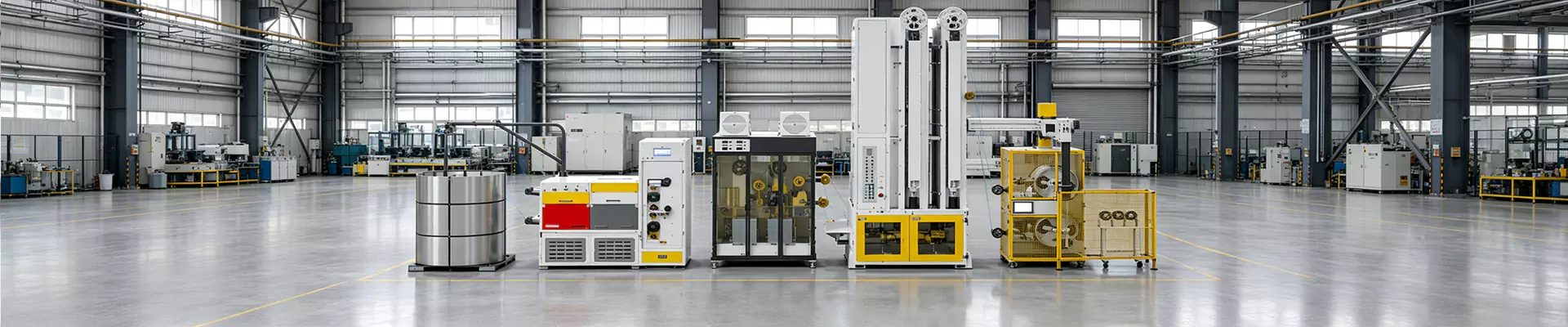

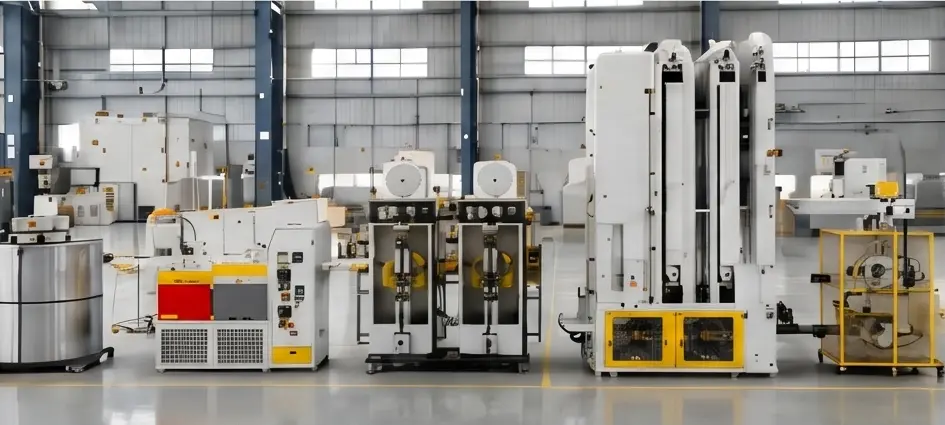

Kayayyakin Masana'antu na GRM

Cikakkun layin samarwa don ƙirƙira madaidaici, ɓarnawa da spooling

Mirgina
Mill

Annealing
Tanderu

Surface
Magani

Spooling
Tsari

Lantarki
Sarrafa

→

Masu Gudanar da Hasken Rana

Babban madaidaicin PV ribbon da MBB zagaye waya

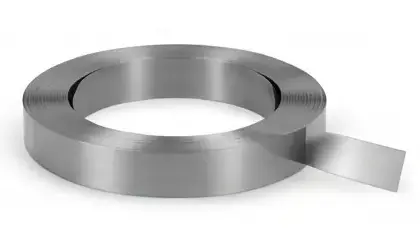

PV Ribbon

(Kin haɗin haɗin haɗin gwiwa / Ribbon Busbar)

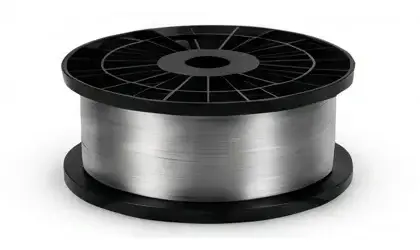

MBB Round Waya

(0.20-0.25 mm)

→

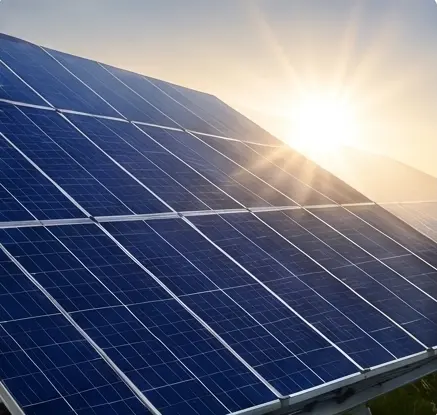

Solar Module

An yi amfani da shi a cikin manyan kayan aikin hasken rana

TOPCon
Moduloli

HJT
Moduloli

Kwatancen Samfur.

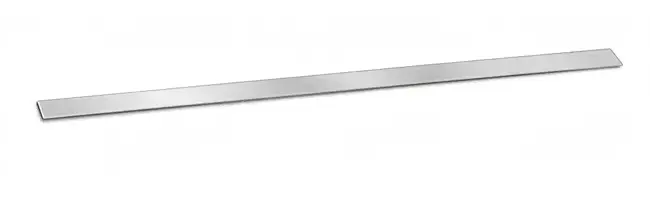

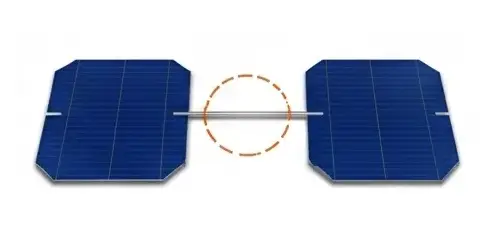

PV Interconnect Ribbon

(Tabbataccen Ribbon)

Aiki

Haɗin salula

Nisa

0.3-1.6 mm

Kauri

0.10-0.25 mm

Aikace-aikace

Zaren Tantanin halitta

Haɗa sel maƙwabta a cikin kirtani.

Mabuɗin Amfani

Amintaccen haɗin salula-da-cell tare da babban solderability da kyakkyawan aiki.

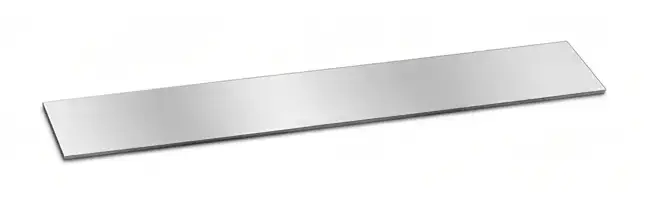

PV Busbar Ribbon

(Bas waya)

Aiki

Tarin Yanzu

Nisa

3.0-8.0 mm

Kauri

0.20-0.50 mm

Aikace-aikace

Fitar Module

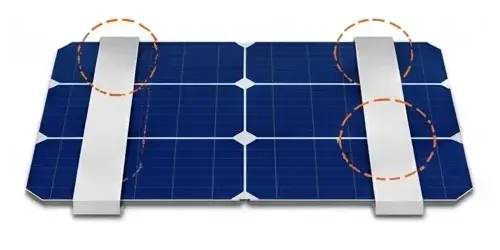

Busbar ribbon current collection diagram

Yana tattara halin yanzu daga sel masu haɗin haɗin gwiwa kuma yana canzawa zuwa akwatin mahaɗa.

Mabuɗin Amfani

Ƙananan juriya da ƙarfin ɗaukar nauyi na yanzu don iyakar ƙarfin fitarwa.

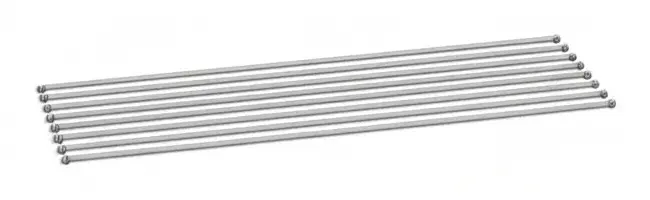

PV MBB Zagaye Waya

Aiki

Haɗin Multi-Busbar

Diamita

0.20 - 0.26 mm

Kauri

–

Aikace-aikace

Modules masu inganci

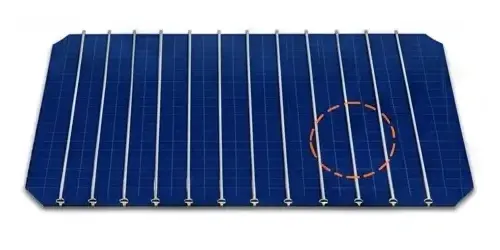

MBB round wire soldering on cell surface

Ana siyar da saman tantanin halitta don rage shading da inganta inganci.

Mabuɗin Amfani

Rage asarar shading da mafi kyawun amfani da haske don ingantaccen tsarin aiki.

Siffar	PV Interconnect Ribbon (Tabbing Ribbon)	PV Busbar Ribbon (Wayar Bus)	PV MBB Zagaye Waya
Aiki	Haɗin salula	Tarin Yanzu	Haɗin Multi-Busbar
Nisa	0.3-1.6mm	3.0-8.0mm	-
Kauri	0.1-0.25mm	0.20-0.50 mm	-
Diamita	-	-	0.20-0.26mm
Aikace-aikace	Zaren Tantanin halitta	Module Fitar	Modules masu inganci

PV ribbon da MBB zagaye waya ana amfani da ko'ina a cikin samar da high-ingancin photovoltaic kayayyaki. Tare da saurin karɓar fasahar salula na TOPCon, HJT da BC, masana'antun suna buƙatar masu jagoranci tare da daidaito mafi girma, ingantaccen solderability da ingantaccen aikin lantarki.

Kayan aikin GRM na goyan bayan samar da masu sarrafa hasken rana da ake amfani da su a:

TOPCon Modules

Farashin HJT

BC Modules

Modules Silicon Crystalline Na Al'ada

Tsarukan Wutar Lantarki na Rana Mai Amfani

Rarraba Ayyukan Makamashin Solar

Shugabannin masana'antu sun amince

An ba da kayan aikin GRM ga manyan ribbon na PV da masu sarrafa hasken rana a China da kasuwannin ketare. Ta hanyar shekaru na haɗin gwiwa tare da abokan masana'antu, GRM ya tara ƙware mai yawa a cikin jujjuyawar madugu, ɓarnawa, tinning da haɓaka tsari.

Maganin injin mu na ribbon na PV ɗinmu yana tallafawa masana'antun da ke samar da masu jagoranci don ingantattun samfuran hasken rana da kuma taimaka wa abokan ciniki haɓaka haɓaka aiki, daidaiton samfur da amincin aiki na dogon lokaci.

Fara Aikin Samar da Rana ta PV

Ko kuna shiga masana'antar gudanarwa na PV ko haɓaka ƙarfin samar da ku, GRM yana ba da cikakkiyar mafita na kayan aiki, ƙwarewar tsari da tallafin fasaha na dogon lokaci.

Tuntuɓi GRM donna musammanPV ribbon ko MBB waya masana'antu bayani.

Me yasa Zabi GRM?

Mai da hankali kan isar da kayan aiki na ci gaba da ingantaccen mafita don ribbon PV da masana'antar waya ta MBB.

20+

Shekaru

Ƙwarewar Ƙwarewar Ƙarfafawa

Ƙwarewa mai yawa a cikin madaidaicin mirgina, sutura da kayan masana'anta.

10+

Halayen haƙƙin mallaka

Fasahar Haɓakawa

Multiple jadadda mallaka fasaha don daidaici mirgina, tashin hankali iko da surface jiyya tafiyar matakai.

100+

Layukan da aka shigar

Bayanan Masana'antu

Amintacce ta manyan ribbon na PV da masana'antun sarrafa hasken rana a duk duniya.

24/7

Goyon bayan sana'a

Sabis na Rayuwa

Cikakken tallafi daga shigarwa da ƙaddamarwa zuwa haɓakawa da haɓakawa.

Tambayoyin da ake yawan yi

1. Menene ribbon PV?

Rubutun PV lebur madugu ne mai lebur wanda aka lullube shi da solder kuma ana amfani dashi don haɗa ƙwayoyin hasken rana a cikin kayan aikin hotovoltaic.

2. Menene bambanci tsakanin ribbon na haɗin haɗin gwiwa da ribbon basbar?

Ribbon haɗin haɗin haɗin gwiwa yana haɗa ƙwayoyin hasken rana, yayin da ribbon busbar yana tattarawa da canja wurin wutar lantarki zuwa akwatin mahadar.

3. Menene MBB zagaye waya?

MBB zagaye waya ana amfani da Multi-busbar solar modules don rage shading asarar da inganta module yadda ya dace.

4.What kayan aiki ake bukata don kera PV kintinkiri?

Cikakken layin samar da kintinkiri na PV yawanci ya haɗa da birgima, cirewa, tinning, sarrafa tashin hankali da tsarin spooling.

5.Can daya samar line samar daban-daban kintinkiri girma dabam?

Ee. Ana iya saita tsarin GRM don samarwa mai sassauƙa da saurin sauya samfur.

View as

Layin Samar da Ribbon Busbar PV

GRM PV Busbar Ribbon Production Line an ƙera shi don ci gaba da sarrafa TU1 maras isashshen oxygen zagaye waya ta jan hankali zuwa cikin madaidaicin kintinkiri mai rufin lebur. Layin ya dace da ribbon haɗin haɗin gwiwa na PV, ribbon busbar, da samar da ribbon busbar mai nuni.
Cikakken layin yana haɗa zanen waya, madaidaiciyar mirgina, ci gaba da ɓarnawa, jiyya mai jujjuyawa, murfin tin mai zafi, da ɗauka ta atomatik. Yana taimakawa masana'antun ribbon na PV sarrafa faɗi da daidaiton kauri, ingancin suturar kwano, madaidaiciyar tsiri, da daidaiton iska.
Layin samar da kintinkiri na GRM yana da tsayin kusan m 26 da faɗin mita 3, tare da jimlar nauyin layin kusan tan 14. Gudun ƙira na iya kaiwa har zuwa 150 m/min, dangane da girman wayan jan ƙarfe, ƙimar kintinkiri da aka gama, saurin tinning, da hanyar ɗaukar hoto. A ƙarƙashin yanayin samarwa na yau da kullun, fitarwa na wata-wata zai iya kaiwa kusan tan 60-80.

Kara karantawa Aika tambaya

Sabon Injin Waya Zagaye na Solar PV

GRM Sabon Solar PV Round Wire Machine an ƙera shi don samar da ribbon haɗin kai, ainihin kayan aikin da aka yi amfani da su a cikin samfuran PV.
Layin yana haɗa daidaitaccen zane, tinning, sarrafa tashin hankali, da iska mai hankali don tallafawa bargarar lissafi na kintinkiri, kauri iri ɗaya, da daidaitattun kaddarorin inji. Waɗannan ikon aiwatarwa suna taimaka wa masana'antun PV haɓaka ingancin haɗin gwiwar salula, amincin tsarin, da daidaiton samarwa na dogon lokaci.

Kara karantawa Aika tambaya

<1 >

A matsayin abin dogara Solar PV Ribbon Machine masana'anta da mai kaya a China, muna da masana'anta. Idan kuna son siyan samfuran inganci da dorewa, da fatan za a tuntuɓe mu.
